IP68 Spot 6x 5 Watt Triled RGB

قیمت کالا :

مشاوره تلفنی رایگان
ارسال به سراسر کشور
اصالت کالا
ضمانت بازگشت کالا
  •

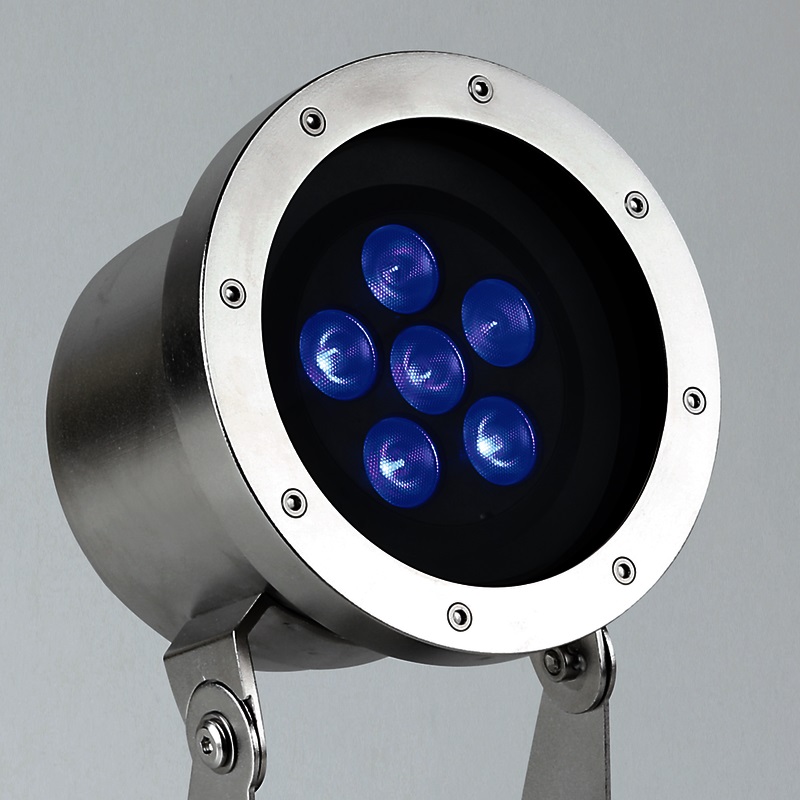

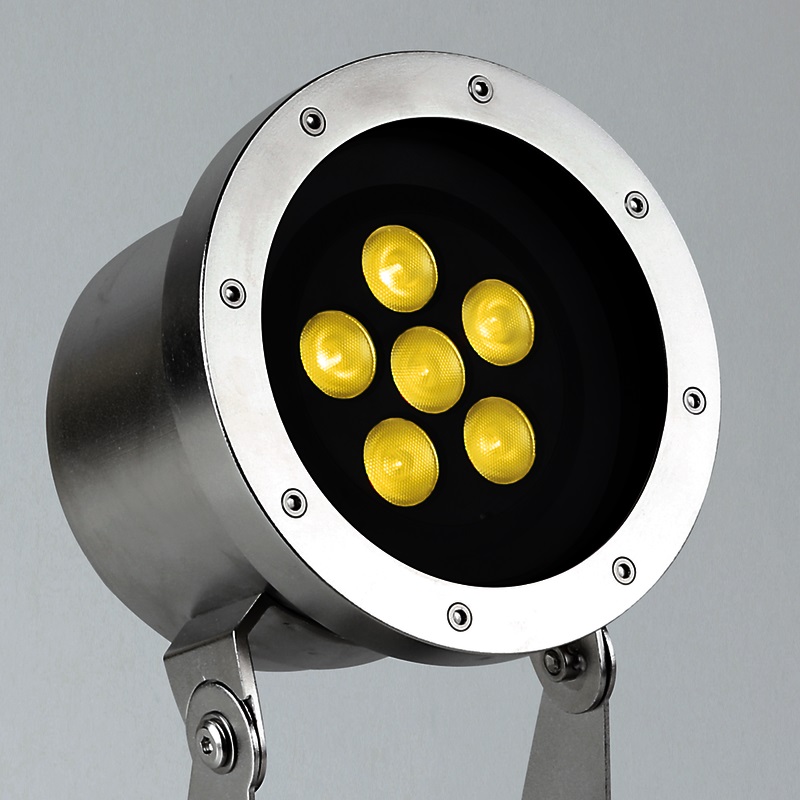

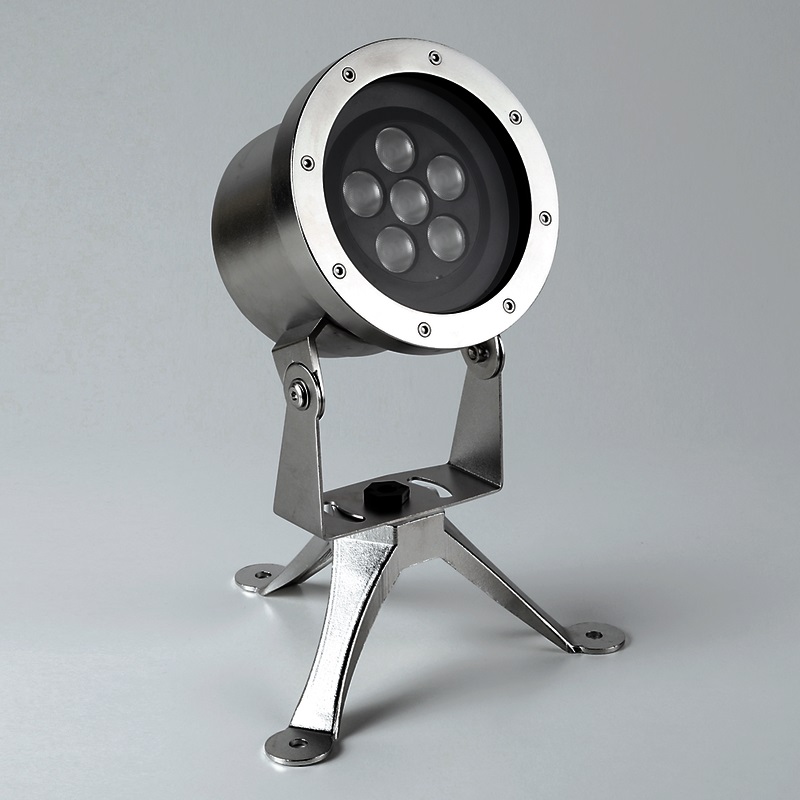

    The PROLED IP68 SPOT is suitable as underwater spotlight for fountains, ponds, water gardens etc. for atmospheric or underwater lighting.



    dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER

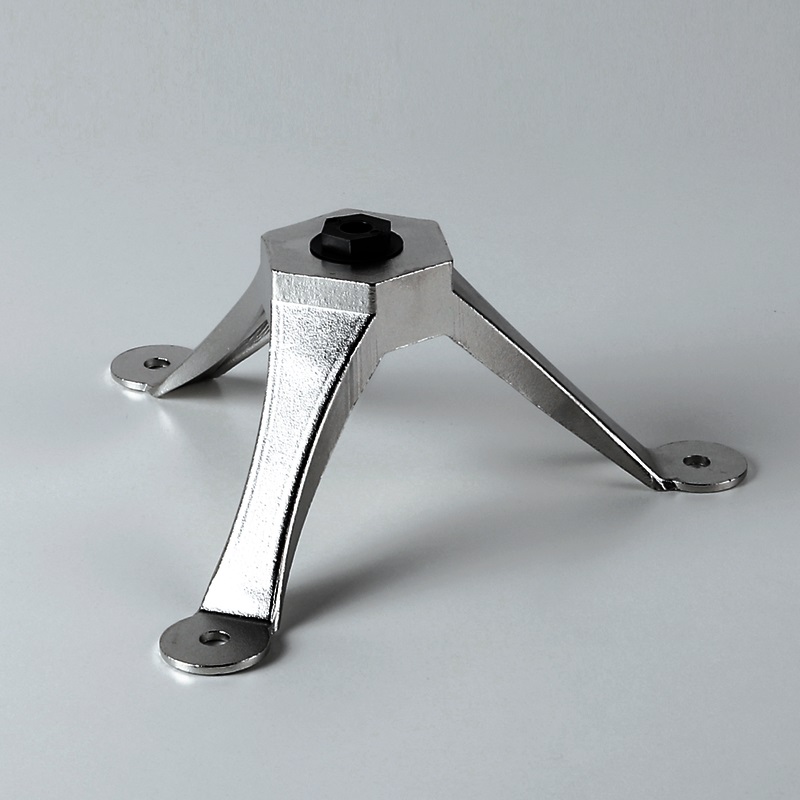

    incl. stainless steel tripod

    This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).



    EULUMDAT/IES information

    TECHNICAL DATA

    IP classification:

    IP68 (for underwater use max. 1 m)



    Power source:

    24 VDC Common Cathode (CC)



    Housing:

    stainless steel 316, 13 mm PMMA



    Electrical connection:

    1x cable 3 m H05RN-F 4x 0,75 mm² with 4-PIN IP68 connector male



    Average lifetime:

    50.000 h at L80/B10



    Operating temperature range:

    -10° C till +40° C



    PHOTOMETRIC DATA

    LED type:

    RGB 3-in-1 LEDs 5 Watt



    Luminous flux:

    red 400 Lumen



    green 800 Lumen



    blue 140 Lumen



    r+g+b (white) 1200 Lumen



    Wave length:

    red 620 nm



    green 525 nm



    blue 460 nm



    Beam angle:

    30°



    Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
